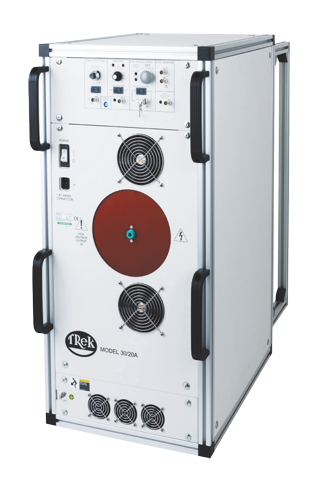

Trek 30/20A-L HIGH-VOLTAGE POWER AMPLIFIER (100/115V)
Manufacturer: TREK Model: 30/20A-L P/N: TK-12447L Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Manufacturer: Trek
Model: 30/20A-L
Origin: USA
Warranty: 12 months
Line Voltage: 100/115V
Output Voltage Range: 0 to ±30 kV DC or peak AC
Output Current Range: 0 to ±20 mA DC or peak AC
Input Voltage Range: 0 to ±10 V DC or peak AC
Input Impedance: 25 kΩ, nominal (inverting/differential option
50 kΩ nominal)
DC Voltage Gain: 3000 V/V
DC Voltage Gain Accuracy
Better than 0.1% of full scale
Offset Voltage: Less than ±4 V
Output Noise: Less than 1.5 V rms*
Slew Rate (10% to 90%, typical): Greater than 350 V/µs
Small Signal Bandwidth (-3dB): DC to greater than 30 kHz
Large Signal Bandwidth (2% distortion) :DC to greater than 2.5 kHz
Dimensions: 103.9 cm H x 43 cm W x 87 cm D
Weight: 73 kg
