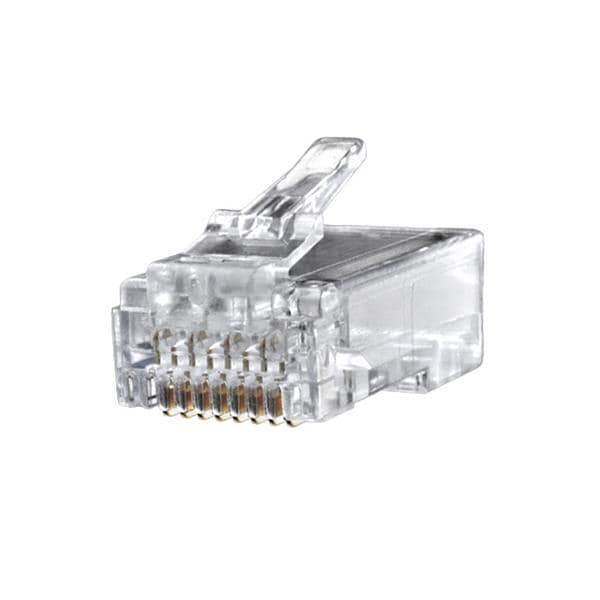

Modular CAT5E l RJ45 l (8C8P)Modular Plug l Shielded l Solid/Stranded l Flat/Round l Built in Strain Relief AIM-Cambridge / Cinch Connectivity Solutions 32-2298UL
Hãng sản xuất: AIM-Cambridge / Cinch Connectivity Solutions Model: 32-2298UL - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Pitch: 1.02 mm
Gender: Plug (Male)
Shielding: Shielded
USOC Codes: RJ45
Application: 1000 Base-T
Unit Weight: 340.200 g
Configuration: 1x1
Tab Direction: User Selectable
Current Rating: 1.5 A
Mounting Angle: Straight
Mounting Style: Cable Mount
Voltage Rating: 30 VAC, 42 VDC
Contact Plating: Gold
Number of Ports: 1 Port
Contact Material: Phosphor Bronze
Termination Style: IDC
Mounting Direction: Vertical
Number of Contacts: 8 Contact
Flammability Rating: UL94 V-0
Number of Positions: 8 Position
Performance Category: Cat 5e
Insulation Resistance: 10 mOhms
Operating Temperature Range: - 40 C to + 85 C
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Number of Positions / Contacts per Port: 8P8C
