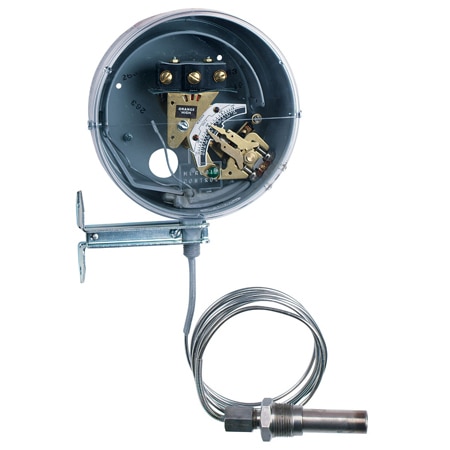

High Sensitivity Temp Switch, Adjustable Deadband, External Adjustments Dwyer DA-7035-153-5N (SPDT Snap, 200 °F)

Weight: 5 lb

Deadband: 25 °F

Materials: Copper

Switch Note: SPDT snap switch. Optional DPDT snap and a variety of mercury switches. 10 A @ 120/240/480 VAC

Switch Type: SPDT Snap

Repeatability: ± 1%

Switch Rating: 10 A @ 120/240/480 Vac

Pressure Limits: Up to 300 psi

Set Point Scale: Indication in °F and °C

Capillary Length: 6 ft

Insertion Length: 2.875 in

Enclosure Ratings: General purpose

Materials, Wetted: 304 Stainless Steel

Media Compatibility: Ammonia, Chlorine, Compatible Gases, Compatible Liquids, Hydrochloric Acid, Sulfuric Acid

Set Point Adjustment: External Knobs for Set Point and Reset Point

Additional Features 1: See web page for additional option models such as: switch type enclosures, fixed deadband, longer or shorter capillary, armored capillary, wells, two stage, 1/2˝ or 1˝ connection sizes, manual reset

Electrical Connection: 1/2 in NPT female Conduit with Screw Terminal block

Enclosure Ratings Note: General purpose. Optional weatherproof and explosionproof

Media Temperature, Max: 300 °F

Process Connection Size: 3/4 in

Process Connection Type: NPT Male

Process Temperature, Max: 200 °F

Process Temperature, Min: 100 °F

Operating Temperature, Max: 180 °F
