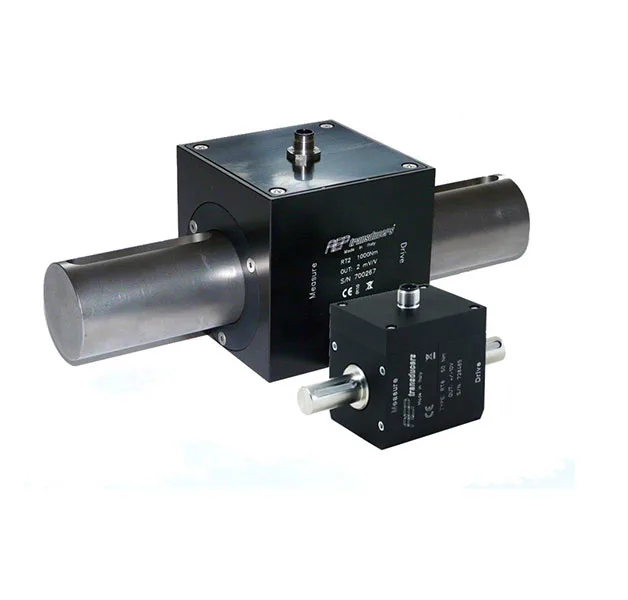

AEP Transducers RT8 Rotating Torque Transducer (IP40; 1000 N•m)

Nominal Torque: 1000 N•m

Linearity And Hysteresis : ≤ ± 0.2 %

Temperature Effect (1°C)::

a) on zero: ≤ ± 0.02%

b) on sensitivity: ≤ ± 0.02%

Nominal Sensitivity: ± 10V

Sensivity Tolerance: ≤ ± 0.2%

Nominal Power Supply: 17-24V

Max. Power Supply: 28V

Max. Absorption: 60mA

Loading Resistance: min. 3KΩ

Response Frequency: 1 kHz

Insulation Resistance: >2 GΩ

Zero Balance: ≤ ± 0.5%

Limit Mechanical Values:

a) service torque: 100%

b) max. permissible torque: 150%

c) breaking torque: >300%

d) highly dynamic torque: 70%

c) nominal speed: 4000 rpm

Reference Temperature: +23°C

Working Temperature Range: -10/+70°C

Storage Temperature Range: -20/+80°C

Protection Class (En60529): IP40

Sensor Execution Material: Stainless Steel

Case Execution Material Process: Aluminum

Coupling: Cylindrical

Electrical Connection : M12X1 Male 5 poles; 3 m cable with molded M12

Weight : ~ 6 kg
