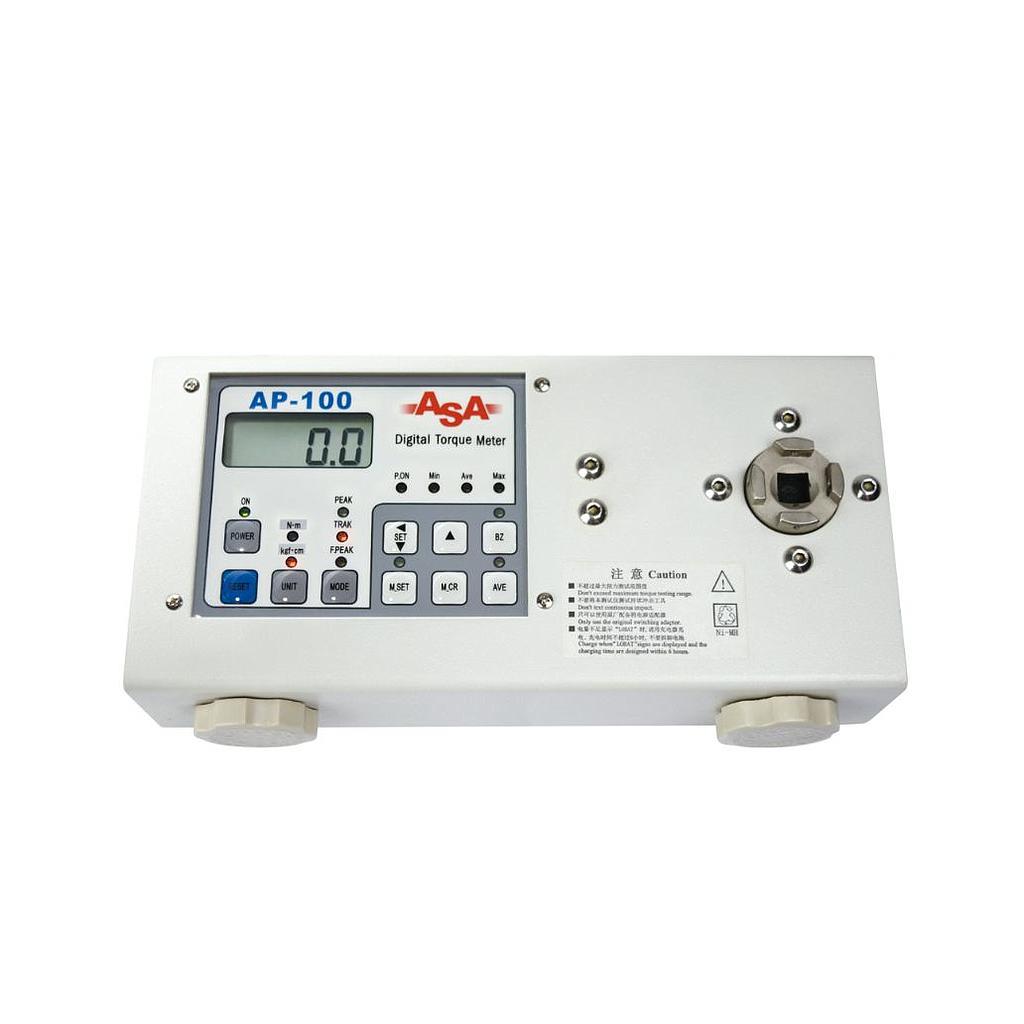

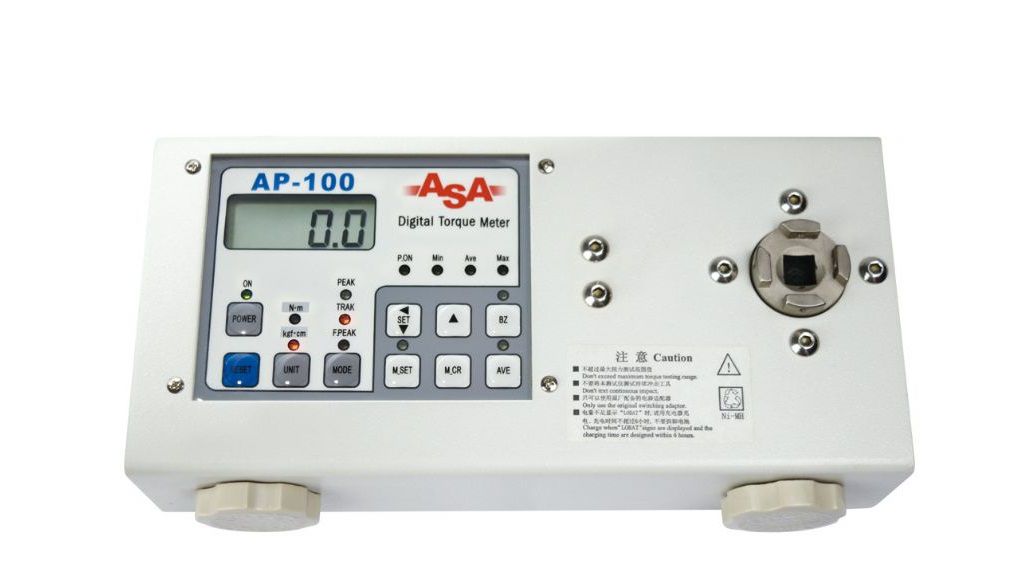

ASA AP-100 Digital torque meter (1.5~100.0 kgf-cm)

Standard measuring range:

1.5~100.0 kgf-cm

0.15~10.00 N.m

1.5~90.0 lbf-in

Accuracy: ±0.05% (199 digit or less ±1 digit)

Display: LCD digital display

Measuring mode:

PEAK: lock display when the torque reaches peak value

TRACK: display changes along with the current torque value

F.PEAK: lock display when the torque reaches first peak value

Power Source: NI-MH chargeable battery 1.2Vx5 cells 700 mAh / 300 time or more charge life

Charging time: 6 hours

Working time: 8 hours

Input voltage: 8 VDC

AC adaptor:

Input: AC100~240V - 60/50Hz

Output: DC7.3~8V, 0.5A

Socket size: 20 mm

Dimension: 230(L) x 120(W) x 60(H) mm

Weight: 2.0 kg
