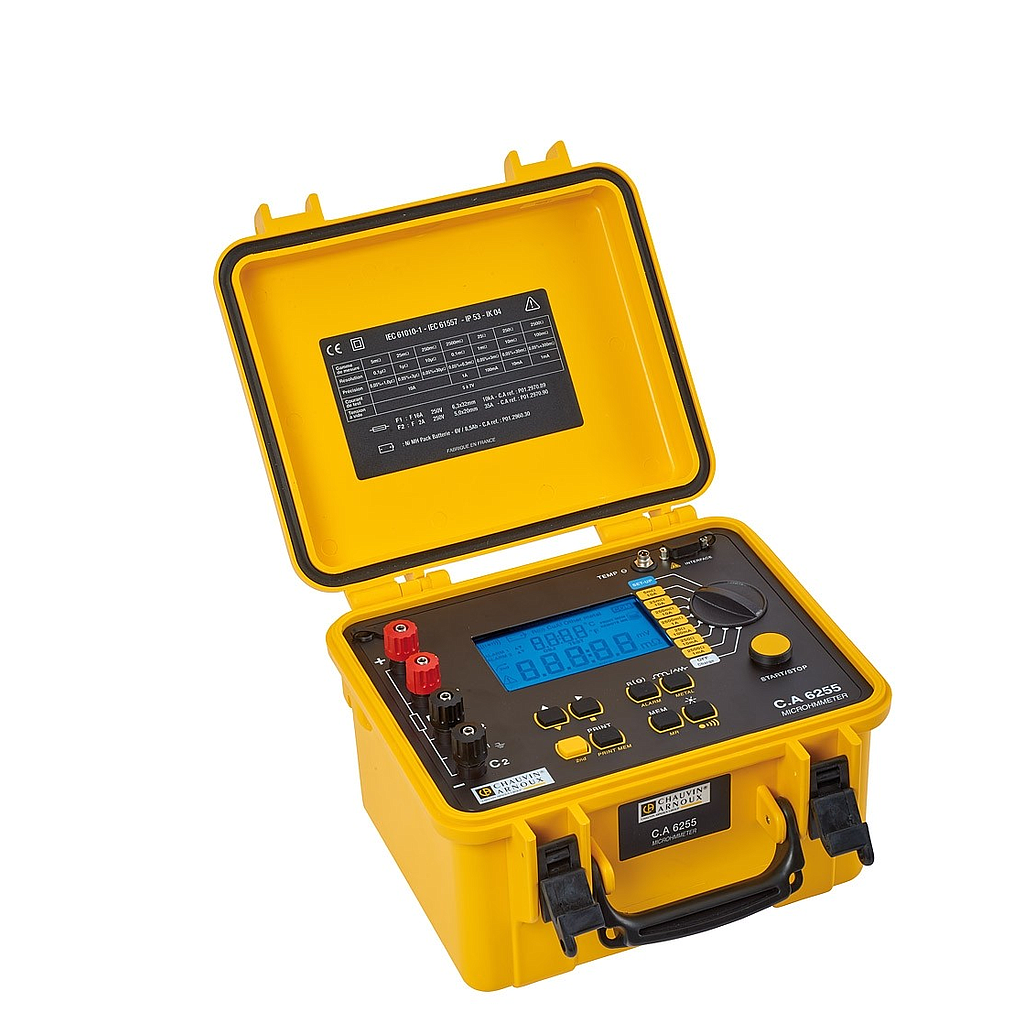

Chauvin Arnoux C.A 6255 Micro-ohmmeters (5mΩ~2500Ω, 10A)

- Measurement method: 4-wire method
- Resistance: 1 μΩ to 2,500 Ω
- Resolution: 0.1 μΩ
- Accuracy: 0.05 %
- Current: 1 mA to 10 A
- Measurement mode: Inductive, non-inductive, non-inductive with automatic triggering
- Temperature compensation: By temperature sensor or manual
- Data storage: 1,500 measurements
- Communication output RS 232 link
- Power supply: NiMH rechargeable battery
- Electrical safety: IEC 61010-1/ Cat III 50 V
- Dimensions: 270 x 250 x 180 mm
- Weight: 4 kg

State at delivery: Delivered with a bag containing:
- 1 set of cables 3 m long terminated by Kelvin clamps
- 1 Euro mains power lead 2 m long
- 9 user’s manuals (1 per language)
- 9 simplified user’s manuals (1 per language)
- MOT (Micro-Ohmmeter Transfer) data transfer software
on CD-ROM
• 1 x RS232 communication cable

Optional accessories:
- P01101794 10 A Kelvin clamps
- P01103065 Double 10 A “pistol” test probe (set of 2)
- P01103063 Double 10 A pivoting test probe (set of 2)
- P01101783 1 A Mini Kelvin clamps (set of 2)
- P01102056 Double 1 A test probe (set of 2)
- P01102013 Pt 100 probe
