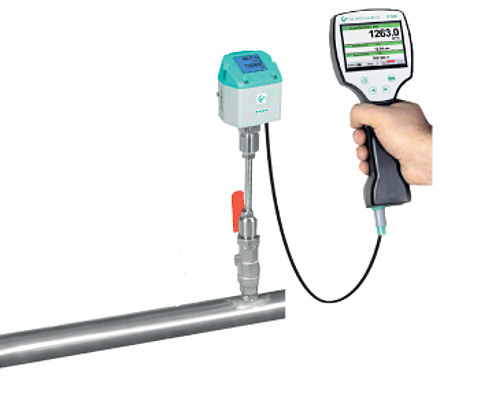

CS Instruments PI 500 (0560 0511) Portable Flow Meter

The portable handheld PI 500 is a hand held instrument for all pneumatic and pneumatic applications in the industry:

    Flow measurement

    Pressure / vacuum measurement

    Temperature

    Measure moisture / dew point

The measured values ​​can be transferred to the computer using the USB stick.

The following sensors can be connected to the PI 500's free sensor input:

Pressure sensors

Flow sensor: VA500 / VA520

Temperature sensor Pt100, Pt 1000 / 4...20mA

FA510 / FA515 dew point sensor

The third sensor of Opitonal with the following signals: 0 ... 1/10 V, 0/4 ... 20 mA, Pt 100, Pt 1000, pulse, Modbus.

3.5 "color screen -Touchpanel TFT transmissive, graphic, curve, statistics

USB interface

Power supply for sensor

Output voltage: 24 VDC ± 10%

Output current: 120 mA continuous operation

Rechargeable Li-Ion battery for charging period. 4 hours

PI 500 operation:> 4h depending on the current consumption of the external sensor

Power supply: 100 - 240 VAC / 50 - 60 Hz, 12VDC - 1A

Dimensions: 82 x 96 x 245 mm

Material: PC / ABS plastic

Weight: 450 g

Operating Temperature: -20 ... 70 ° C

                               0 ... 50 ° C ambient temperature

Storage temperature: -20 to +70 o C

Memory size: 2 GB standard SD card, optional up to 4 GB
