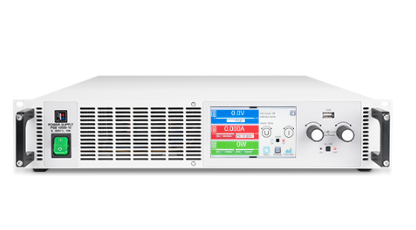

EA Elektro-Automatik PSB 10080-60 Programmable Bidirectional DC Power Supply (80V; 60A; 1500W)
Manufacturer: EA Elektro-Automatik Model: PSB 10080-60 P/N: 30000721 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
DC-Output:
Voltage range : 0 - 80 V
Ripple rms CV : 10 mV BW 300 kHz
Ripple and noise p-p CV : 100 mV BW 20 MHz
U Min for IMax (Sink) : 0.8 V
Current range : 0 - 60 A
Power range *1 : 0 - 1500 W (0 - 1200 W)
Resistance range : 0.04 Ω - 80 Ω
Output capacity : 8640 μF
Efficiency up to : 94.0% *2
Isolation:
Negative DC-Pol <-> PE : ±1000 V DC
Positive DC-Pol <-> PE : +1000 V DC
*1 The value in brackets applies to the state of derating (power reduction) for 110 V AC and 120 V AC grid
*2 100% Power and 100% Output voltage
