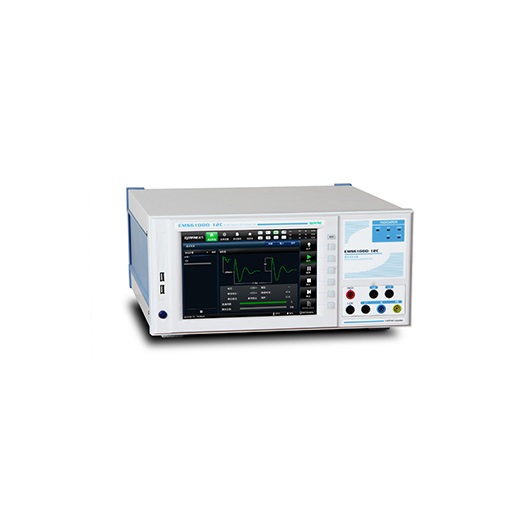

EVERFINE EMS61000-12C Ring Wave Generator
Manufacturer: EVERFINE Model: EMS61000-12C Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Peak open circuit voltage: 0.25~7.0kV±10%
Open circuit voltage wave: The front 0.5us±20%, Short circuit voltage wave≤1us
Oscillation frequency: 100kHz±10%
Output impedance: 12Ω, 30Ω, 200Ω
Polarity: Positive /Neg./Alternation
Trigger phase:
Asynchronous / phase synchronization / external synchronization, 1° step
Specific phase switching (0°~90°~180°~270°)
Voltage attenuation: 0.4<0.8<="" ，0.4
Built-in single/three-phase decoupling network: Three phase five wire system, line voltage 450VAC/20A, DC 220VDC/20A
Communication: RJ45, USB
