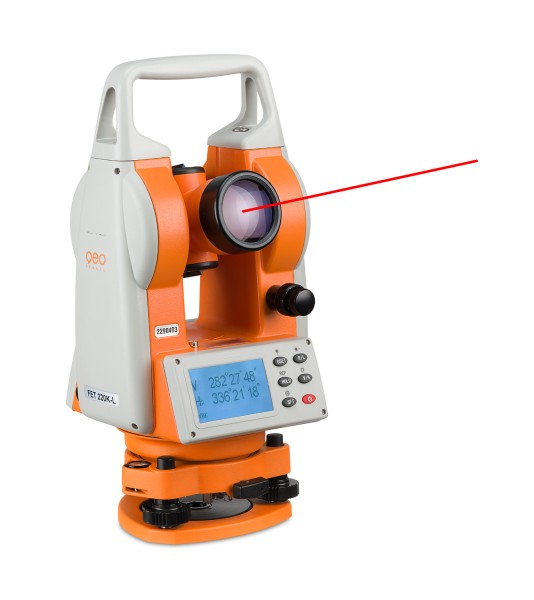

GEO-Fennel FET 220K-L Electronic Theodolite
Manufacturer: GEO-Fennel Model: FET 220K-L P/N: 313100 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Dust / water protection: IP 54
Laser plummet: laser class: 2
Weight: 4.2 kg
Minimum reading: 1" (0.2 mgon)
Accuracy: 2" (0.6 mgon)
Laser plummet: spot size: ± 1.5 mm auf 1.5 m
Tripod: removable
Max. visible distance: 180 m
Laser point finder: focusable
Compensator: 2-axis compensator
Plate level: 30" / 2 mm
Measuring units: 400 gon / 360°
Laser class: 2
Weight (instrument only): 4.2 kg
Angle measurement: absolute encoder
Shortest focussing distance: 1.5 m
Telescope magnification: 30 x
Optical axis tolerance: 5"
Objective diameter: 45 mm
Circular bubble: 8' / 2 mm
Temperature range: -20° to +50°C
Operating time: 10 h
Power supply: NiMH
Beam diameter: 6 mm / 100 m
