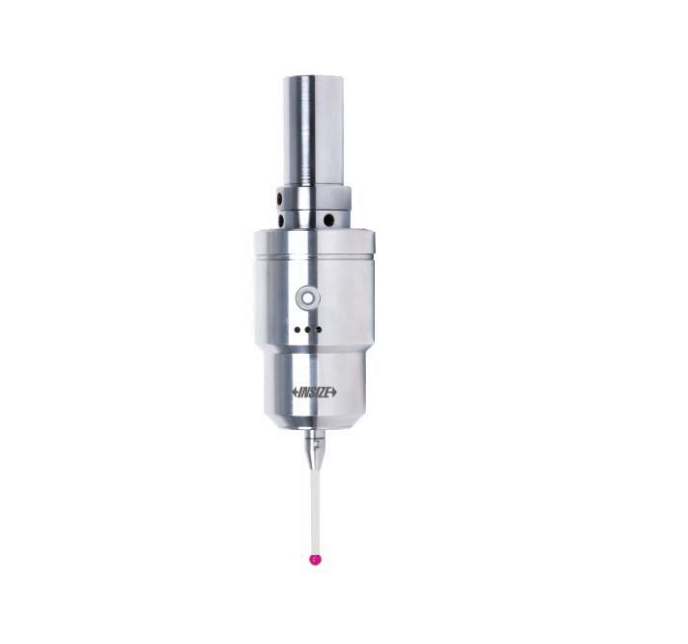

INSIZE 9410 Trigger-Type 3D Probe (115.5mm)
Manufacturer: INSIZE Model: 9410 - Contact
- In stock: 1 Unit
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Probe length(L): 115.5mm
Shank diameter(D): 20mm
Trigger direction: +X, ±Y, +Z
Directional trigger protection stroke: X-Y+12°, Z+5mm
Arbitrary one-way repeated trigger accuracy: ≤1μm
Trigger force in X-Y direction (with standard styli): 0.3-0.6N
Trigger force in Z direction: 4N
Class of protection: IP 67
Type-C charging cable: 1.5m
Signal extension cord (provide signals to CNC): 1m
