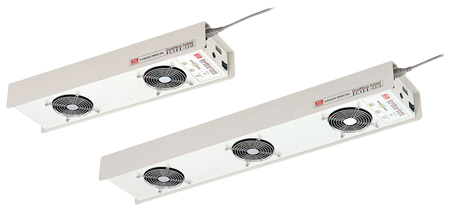

Kasuga IOH-03 Overhead ionizer
Manufacturer: KASUGA Model: IOH-03 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Ion generation method: DC corona discharge
Discharging electrode needle: Special alloy with low dust emission
Method of ion balance control : Control by D.I.C. circuit
Ion balance* Within ±10V (at time of factory shipment), permits fine tuning
Fan speed: Variable (non-step)
Maximum Air volume: 3.0 m3/min x 3 fan
Maximum airflow speed*: 0.87m/sec
-Alarm display:
+ Alarm lamp blinking: Cleaning alarm (control limit), high-voltage alarm
+ Alarm lamp staying lit: High-voltage stop (when voltage exceeds the control range or the high-voltage alarm continues)
- Alarm output (External output)
+ ionization output: During ionization (high-voltage output)
+ Alarm output: While alarm lamp blinks or stays lit
External input: Permits feedback input of electrostatic potential or ion balance
Amount of ozone production*: 0.02 ppm or less
Operating environment: Temperature: 0°C-40°C, Humidity: 80% RH or below (no condensation)
Input condition: AC100-240V (permits series connection of up to 10 units)
Power cable: Approx. 1.8 m (power cable with grounding electrode)
Power consumption: 54VA
Mass: Approx. 5.0kg
- Control by the new D.I.C. circuit* not only maintains a certain ion balance but also ensures a consistent amount of ion generation. This allows ionization in the optimal condition at all times, with no degradation of ionization performance. Frequency of maintenance can thus be significantly reduced.
- The rear fan guard can easily be removed just by sliding it, which allows easy access to the area around the electrodes, ensuring easy maintenance.
- When the ionizer is turned on, it displays the remaining interval before the next maintenance.
- Electrode needles made of a special alloy with low dust emission allow use of the unit in a clean-room environment.
When the unit is turned on, it displays the remaining interval before the next maintenance by the number of LED lamps lit.
*The D.I.C. (Double Ion Control) circuit maintains the optimal condition for static elimination by simultaneously controlling the ion balance and amount of ion generation.
Specifications
| Model | IOH-03 | IOH-02 | |
|---|---|---|---|
| Ion generation method | DC corona discharge | ||
| Discharging electrode needle | Special alloy with low dust emission | ||
| Method of ion balance control | Control by D.I.C. circuit | ||
| Ion balance* | Within ±10V (at time of factory shipment), permits fine tuning | ||
| Fan speed | Variable (non-step) | ||
| Maximum air volume | 3.0 m3/min × 3 fans or 2 fans | ||
| Maximum airflow speed* | 0.87m/sec | 0.70m/sec | |
| Alarm display | Alarm lamp blinking | Cleaning alarm (control limit), high-voltage alarm | |
| Alarm lamp staying lit | High-voltage stop (when voltage exceeds the control range or the high-voltage alarm continues) | ||
| Alarm output (External output) |
ionization output | During ionization (high-voltage output) | |
| Alarm output | While alarm lamp blinks or stays lit | ||
| External input | Permits feedback input of electrostatic potential or ion balance | ||
| Amount of ozone production* | 0.02 ppm or less | ||
| Operating environment | Temperature: 0°C-40°C, Humidity: 80% RH or below (no condensation) | ||
| Input condition | AC100-240V (permits series connection of up to 10 units) | ||
| Power cable | Approx. 1.8 m (power cable with grounding electrode) | ||
| Power consumption | 54VA | 32VA | |
| Mass | Approx. 5.0kg | Approx. 3.6kg | |
*Measurement distance450mm
Ionization performance
Dimensions [mm] and names of parts
IOH-03
Intended use
- Ionization in a wide area on the workbench used in cell production process
- Ionization from objects on a conveyor
