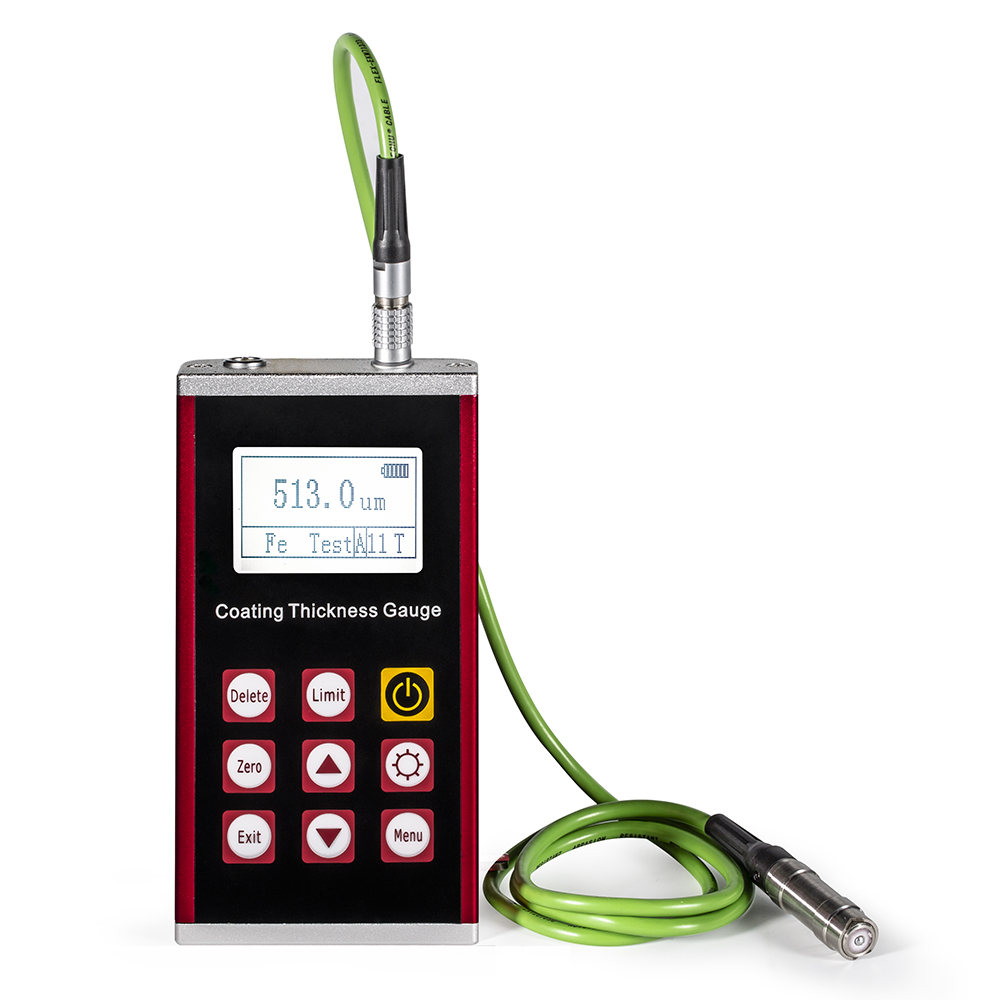

Leeb UEE922 Coating thickness gauge (0~1250μm; 0.1μm)
Manufacturer: Leeb Model: UEE922 Origin: China Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Measuring principle: Magnetic induction (Fe ) & Eddy current ( NFe)
Measuring range (µm): 0~1250μm
Probe: Changeable
Shell: Metal
Accuracy: ±(2%H+1) μm; H refers to the thickness of testing piece
Minimum resolution (µm): 0.1μm
Min curvature of the min area (mm): Convex1.5 Concave9
Diameter of the min area (mm): Φ7
Critical thickness of substrate (mm): 0.5
Memory: 1560
Dimensions: 130*70*30mm
Power supply: 2*AA Alkaline battery
Standard Configuration: Main Machine, probe*1(Fe or NFe), substrate*1(Fe or NFe), software & USB, Calibration specimens*5, Users’ Manual, Qualified Certificate, AA battery*2, Packing list, Warranty card
Optional Accessories: Probes,Specimens
