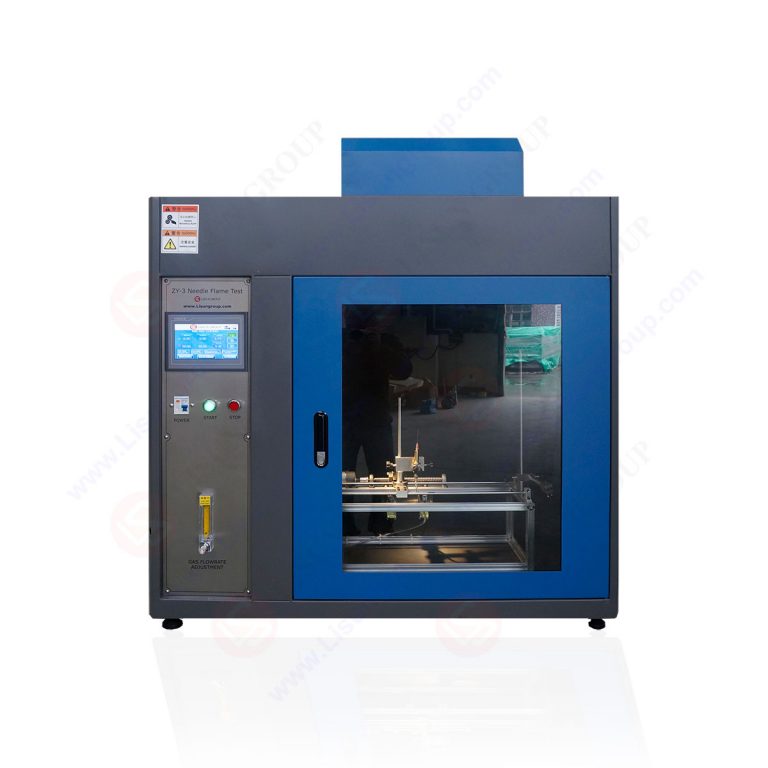

Lisun ZY-3 Needle Flame Test (0 ~ 1000℃)

Name: Lisun ZY-3 Needle Flame Test (0 ~ 1000℃)
Brand: Lisun
SKU: LisunZY-3
Availability: OutOfStock

• Angle of burner: incline with 45° (when in test) / plumb (when adjust the flame’s height)

• Needle flame burning time: 0~999.9s±0.1s adjustable (30s in general)

• Sample burning time: 0~999.9s±0.1s, auto mark and pause manually

• Height of flame: 12mm±1mm (gauge is included)

• Burning air: 95% butagas

• Test range of temperature: 0~1000℃

• Requirement of flame’s temperature: the temperature rises from 100℃±2℃ to 700℃±3℃ within 23.5 seconds±1s

• Temperature testing thermocouple: Φ0.5mm K pattern thermocouple

• Applied with touch screen and remote control
