Home Thread Gages Mahr 4452000 Indicating Thread Snap Gage (840FM, 0-40 mm)

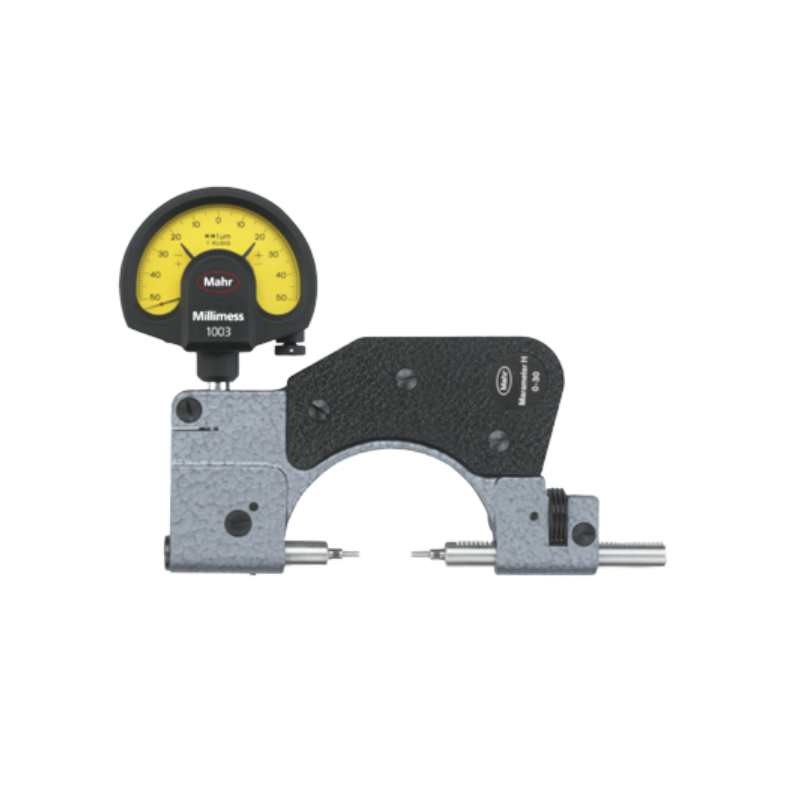

Mahr 4452000 Indicating Thread Snap Gage (840FM, 0-40 mm)

Product type: 840 FM

Application range: 0-40 mm

Tooth spans: 0.5

Measuring span: 2 mm

Size of measuring surface: 12 x 12 mm

Parallel error: 2 µm

Flatness: 0.5 µm

Repeatability fw: 1 µm

Measuring force: 7.5 N

Dimensions: a 14 mm | b 140 mm | c 68 mm | e 60 mm | f 77 mm | g 13 mm | h 13 mm | k 25 mm | l 34 mm | m 12 mm | p 12 mm | t 11 mm

Details

Dimension

Dimensional drawing 1
