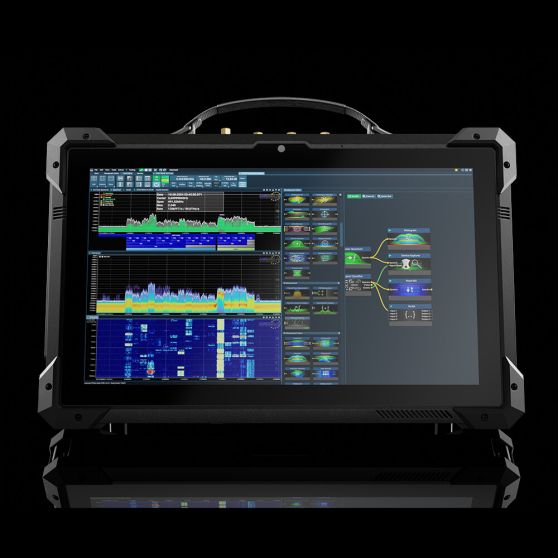

Optical Spectrum Analyzer (OSA) Solutions

An Optical Spectrum Analyzer (OSA) is a specialized measurement device in the field of optics that allows users to display and evaluate the power of light signals. It is commonly used to observe the spectral signal from optical sources or transmission systems, such as testing light sources, analyzing WDM systems, assessing the performance of optical amplifiers, investigating the optical properties of components, and performing OSNR (Optical Signal to Noise Ratio) measurements, among others.

Typical Applications of OSAs

Analyzing the amplification across individual wavelengths in optical fiber amplifiers.

Measuring and evaluating light sources such as lasers, LEDs, and other luminous sources.

Conducting measurements of reflectance or the optical characteristics of systems by wavelength.

Assessing OSNR to verify the quality of optical signal transmission.

Measuring insertion loss across wavelength ranges to analyze transmission efficiency through cables or other optical components.

Why Use an Optical Spectrum Analyzer (OSA) in Advanced Fiber Optic System Testing?

Analyzing Optical Components and Materials in Transmission Networks

In optical transmission systems, the Optical Spectrum Analyzer (OSA) is the ideal test instrument when comprehensive spectral analysis needs to be combined with channel-by-channel signal verification. OSAs play a critical role in providing detailed spectral data for optical components, fiber optic cables, and supporting materials. They are widely used in R&D, calibration testing, installation, and troubleshooting in optical networks. OSAs are indispensable tools in DWDM and CWDM transmission technologies.

Common Optical Components and Materials Tested with OSAs

Wavelength Division Multiplexing (WDM), CWDM, and DWDM modules

Fiber optic connectors

Fiber end faces

Optical jumpers

Optical attenuators

Optical adapters

Optical switches

Optical splitters

Optical isolators

Wavelength-specific optical filters

Optical couplers

Fiber optic cables

While both OSAs and wavelength meters can display the power spectrum by wavelength, each device has its own specific technical strengths. Wavelength meters are dedicated to highly accurate wavelength determination, typically used for laser measurement. In contrast, OSAs provide both wavelength and power analysis with high accuracy across much broader wavelength ranges. This makes OSAs ideal for monitoring transmission signals and particularly useful for distinguishing desired signals from noise, expressed through the OSNR (Optical Signal to Noise Ratio).

In DWDM (Dense Wavelength Division Multiplexing) systems, OSAs play a central role in channel power measurement, wavelength verification, and OSNR assessment within specified wavelength ranges. Typically, an OSA covers the entire transmission band of single-mode fibers—from 1250 nm to 1650 nm—making it suitable for WDM telecommunications applications.

Two key specifications to consider when selecting an OSA are wavelength measurement accuracy and power measurement accuracy. In DWDM environments, OSNR is often considered the critical factor influencing transmission performance.

Key Specifications to Consider When Selecting an Optical Spectrum Analyzer

An Optical Spectrum Analyzer (OSA) measures the power of light signals at specific wavelengths or frequencies, operating within a wavelength range that depends on the intended application.

One of the most common applications of OSAs is analyzing optical components and testing light signals in telecommunication transmission systems. As a valuable and often expensive piece of equipment, understanding actual needs and the technical parameters related to specific measurements is crucial before investing. Some common standards applied in testing and analysis with OSAs include:

DWDM channel monitoring according to ITU G.694.1 standards, covering channel spacings of 25 GHz, 33 GHz, 37.5 GHz, 100 GHz, and 200 GHz.

CWDM channel monitoring according to ITU G.694.2.

OSNR assessment following IEC 61280-2-9 measurement standards.

Technical Factors to Consider When Choosing an OSA

When selecting an Optical Spectrum Analyzer, factors such as frequency range, wavelength range, and resolution should be thoroughly evaluated. While numerous performance criteria exist, the following are some of the most important:

Wavelength Range

Each OSA is designed to operate within a specific wavelength range, depending on the limitations of its integrated dispersive elements or optical sensors. Choosing the appropriate wavelength range should be based on the signals used in the optical system.

If a single device is needed to measure both CWDM and DWDM networks, it must support the full wavelength range from 1260 nm to 1650 nm. Additionally, the optical resolution should be below 0.1 nm to meet the 50 GHz channel spacing requirement in DWDM systems. For OSNR measurements, the OSA should have a dynamic range of at least 65 dB to ensure accuracy.

Frequency Range

The frequency range of an OSA indicates the spectrum over which the device can operate. This must be selected in accordance with the specific testing applications to ensure accurate and comprehensive measurement results.

Resolution and Wavelength Filtering

OSA wavelength resolution typically ranges from 0.1 to 5 nm. High-performance models can achieve resolutions as fine as 0.01 nm, allowing for more detailed signal analysis. Some models also integrate optical filters to enhance tunability and measurement precision within desired spectral ranges.

Dynamic Range and Sensitivity

Dynamic range indicates the maximum and minimum signal levels the device can measure. Sensitivity reflects the OSA’s ability to detect very low-power signals. In simple terms, these parameters define how weak a signal the OSA can register compared to the noise floor.

Wavelength Measurement Accuracy

Wavelength measurement accuracy depends on the calibration capability and condition of the device. Over extended periods of use, especially in harsh environments, calibration drift may occur, affecting measurement precision. A high-accuracy OSA ensures greater reliability in measurement results.

Power Measurement Accuracy

This specification reflects how precisely the device can measure the input signal’s power. In optical transmission systems, selecting an OSA with high power measurement accuracy or using it in conjunction with a dedicated optical power meter is recommended to ensure reliable results.

Measurement Speed and Data Processing

The signal acquisition speed of an OSA depends on several factors, including wavelength range, resolution, dynamic range, and measurement mode. Settings such as scan mode, accumulation time, and measurement scope directly impact processing speed. For applications requiring fast processing, high scan rates are a significant advantage.

Connectivity with Computers and Peripheral Devices

Another consideration is connectivity with high-speed LAN-based control software, enabling real-time remote operation. Additionally, USB ports are essential for data storage and auxiliary control functions.

Conclusion

Currently, EMIN distributes a wide range of Optical Spectrum Analyzers from renowned brands such as AARONIA, ANRITSU, EXFO, Pintech, and SALUKI. Depending on your application—whether basic testing or advanced analysis in DWDM transmission networks—you can easily find a suitable device at EMIN.

We provide products with clear specifications, tailored consultation solutions, and dedicated support to help you optimize your time when deploying or upgrading your measurement systems.
