PHYWE 15280-88 Student Set Optics 3 Wave Optics (Class 10-13)

- Function and Applications

Supplementary equipment set for the sets Optics 1 (15276-88) and Optics 2 (15277-88). Together with the sets Optics 1 and 2, the optional equipment TESS Optics color mixing (13250-77) and the optional accessories for Optics 3 (13465-88), it is possible to performe 96 student experiments in total:

• Interference (4 Experiments)

• Diffraction from unidimensional objects (8 Experiments)

• Diffraction from two-dimensional objects (3 Experiments)

• Resolving power (3 Experiments)

• Qualitative experiments on polarisation (6 Experiments)

• Quantitative experiments on polarisation (2 Experiments)

• Propagation of light (11 Experiments)

• Mirrors (11 Experiments)

• Refraction (10 Experiments)

• Lenses (14 Experiments)

• Colours (6 Experiments)

• The human eye (5 Experiments)

• Optical equipment (9 Experiments)

• Wave optics (4 Experiments)

- Benefits:

• Complete equipment set: simple execution of the experiments

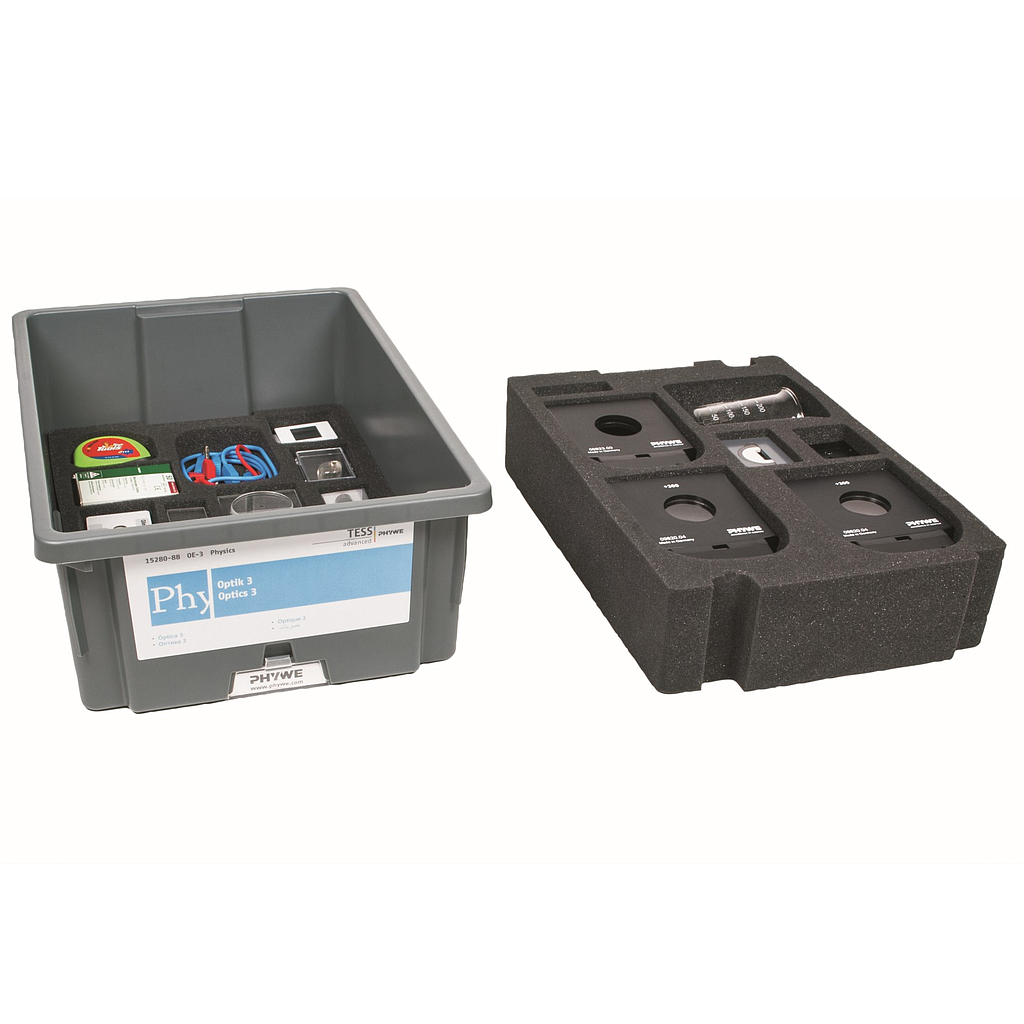

• The equipment is stored in a rugged, stackable and compact box, allowing quick control of completeness (foam insert)

• Experimenting literature for pupils and teachers available: minimal preparation time

• Matched with international curriculum: all topics are covered

• Through the use of a stable optical bench made of metal safe and exact experimental setups

• Easy teaching and efficient learning by using the interactive experimentation software interTESS

- Equipment and technical data:

• The equipment set consists of all necessary components for the experiments

• Robust, stackable storage box with a foam insert fitting to the contained equipment

- Scope of delivery:

• Lens on slide mount, f=+300mm: 09820-04, 2

• Mount with scale on slide mount: 09823-00, 1

• Photoelastic model: 09829-00, 1

• Plate mount for three objects: 09830-00, 2

• Measuring magnifier: 09831-00, 1

• Slit, width adjustable up to 1 mm: 11604-07, 1

• Aperture, d 0.4mm: 08206-04, 1

• Diaphragm with single slit, bar and edge: 08521-00, 1

• Diaphragm, 3 single slits: 08522-00, 1

• Diaphragm, 4 double slits: 08523-00, 1

• Diffraction grating, 4 lines/mm: 08532-00, 1

• Diffraction grating, 8 lines/mm: 08534-00, 1

• Diffraction grating,10 lines/mm: 08540-00, 1

• Measuring tape, l = 2 m: 09936-00, 1

• Beaker, boro, low-form | Volume: 250 ml: 46054-00, 1

• Microscopic slides, 50 pcs: 64691-00, 1

• Diaphragm, 4 multiple slits: 08526-00, 1

• Lid for TESS box, plastic: 15205-01, 1

• TESS box, plastics, high, 305 x 425 x 150 mm: 15200-01, 1

- Necessary accessories:

• TESS advanced Physics supplementary Set Colour mixing 13250-77

• Student set Optics 1, necessary accessories for 1 group, TESS advanced Physics 13460-88

• Student set Optics 1, consumables for 10 groups, TESS advanced Physics 13461-88

• Student set Optics 2, consumables for 10 groups, TESS advanced Physics 13462-88

• TESS advanced Wave Optics/Optics 3 consumables for 10 groups 13463-88

- Recommended accessories:

• TESS advanced Optics OE 3 optional accessories for 1 group 13465-88

• Handbuch Schülerversuche Optik, TESS advanced Physik, (in german) 01164-01
