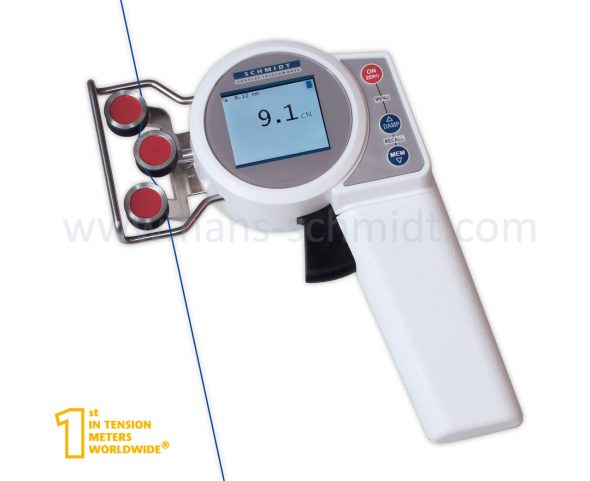

SCHMIDT ZED-500 Tension Meter (1 – 500 cN)

Measuring Range: 1 – 500 cN

Resolution: 1 cN

Measuring Head Width*: 63 mm

SCHMIDT Calibration Material**: PA: 0.20 mm Ø

Calibration: According to SCHMIDT factory procedure

Accuracy: ±1 % full scale ±1 digit or better; typical ±0.5 % full scale

Measuring Units: cN, g, N or lb, switchable

Overrange: Approx. 10 % full scale, without accuracy guarantee

Overload protection: 200 % full scale

Measuring principle: Strain gauge bridge

Measuring roller deflection: Max. 0.5 mm

Signal processing: Digital

Damping: Adjustable electronic damping, averaging

Sampling rate internal: Approx. 1 kHz

Sampling rate: 250 Hz (250 readings/sec)

Display: Colour-TFT 128 x 160

3 different displays: Numeric; Numeric with live bargraph; Numeric with graph (time-tension)

Display update rate: 2 times per second

Memory: Last, AVG, MIN, MAX, STD Dev

Auto power off: After 3 minutes of non-use

Temperature range: 10 – 45 ºC

Air humidity: 85 % RH, max.

Power supply: LiPo accumulator (approx. 25 h continuous use, charging time approx. 3.5 h), USB AC adapter 100 – 240 V AC with 4 adapters (EU/USA/UK/AUS-NZ)

Housing material: Plastic (POM)

Dimensions: See Dimensions

Weight, net (gross): Approx. 200 g (600 g)

Other units of measure are available, such as g.

* Width of filament guide

** Suitable for 95 % of applications – PA = Polyamide Monofilament

Delivery Includes: carrying case, USB AC adapter with 4 adapters (EU/USA/UK/AUS-NZ), charging cable, operating instruction in German or English (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
