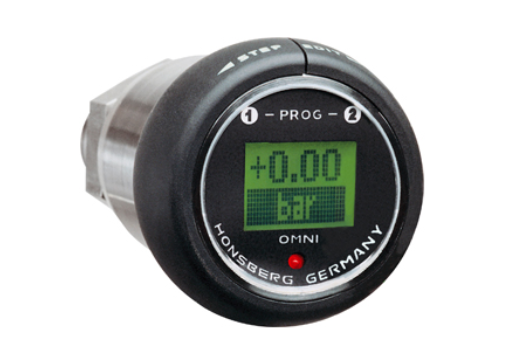

Senseca OMNI-P1 Pressure transmitter with LCD (18..30 V DC)

Measurement accuracy: ±1 % of final value; plus 0.05 %/K at < 0 °C and > 60 °C

Repeatability: ±0.5 % of full scale value

Dynamics: measurement cycle 32 ms, display cycle 0.5 sec.

Working temperature: -20..+70 °C(with gooseneck max. 120 °C)

Storage temperature: -20..+80 °C

Supply voltage: 18..30 V DC

Power consumption: < 1 W

Analog output: 0/4..20 mA, 0/2..10 V via a 500 Ohmresistance after 0 V (impedance of the receiver > 100 kOhm)

Switching output: transistor output "push-pull" (resistant to short circuits and polarity reversal); Iout = 100 mA max.

Hysteresis: adjustable, for Min-switch, position of the hysteresis above the limit value, and for Max-switch, below the limit value

Display: backlit graphical LCD-Display (transreflective), extended temperature range -20..+70 °C, 32 x 16 pixels, background illumination, displays value and unit, flashing LED signal lamp with simultaneous message on the display.

Electrical connection: for round plug connector M12x1, 5-pole

Ingress protection: IP 67

Materials medium-contact: stainless steel 1.4571, ceramic Al2O3, FKM

Materials, non medium-contact: stainless steel 1.4305 (housing), hardened mineral glass, POM (programming ring), Samarium-Cobalt (magnet)
