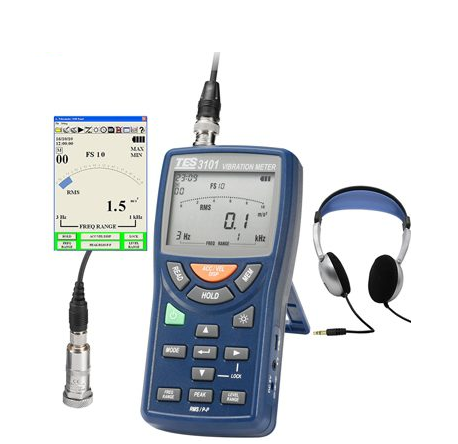

TES TES-3101 Vibration Meter (200m / s²)

Piezoelectric Accelerometer (PA-01)

Sensitivity: 5mV/(m/s²) (± 10%)

Acceleration Range: 200m/s²

Amplitude Non-linearity: ± 1%

Frequency Response: 5Hz to 10kHz (± 10%), 10kHz to 15kHz (± 3dB)

Resonance Frequency: 27kHz

Transverse Sensitivity: ≦ 5%

Dimensions/Weight: 46(H) x 19(D)mm / 46g

Measurement Range (using PA-01 or PA-02)

ACC (Acceleration): 0.02 to 200m/s² EQ PEAK 1Hz to 5kHz

VEL (Velocity):

0.3 to 1000mm/s RMS 3Hz to 1kHz

0.1 to 1000mm/s RMS 10Hz to 1kHz

DISP (Displacement):

0.02 to 100mm EQ PEAK 3Hz to 500Hz

0.001 to 100mm EQ PEAK 10Hz to 500Hz

Measurement full-scale ranges

For Accelerometer PA-01 and Accelerometer with Sensitivity: 1.0 to 9.9mV/(m/s²)

ACC (Acceleration): 1, 10, 100, 1000m/s²

VEL (Velocity): 10, 100, 1000mm/s

DISP (Displacement): 0.1, 1, 10, 100mm.
