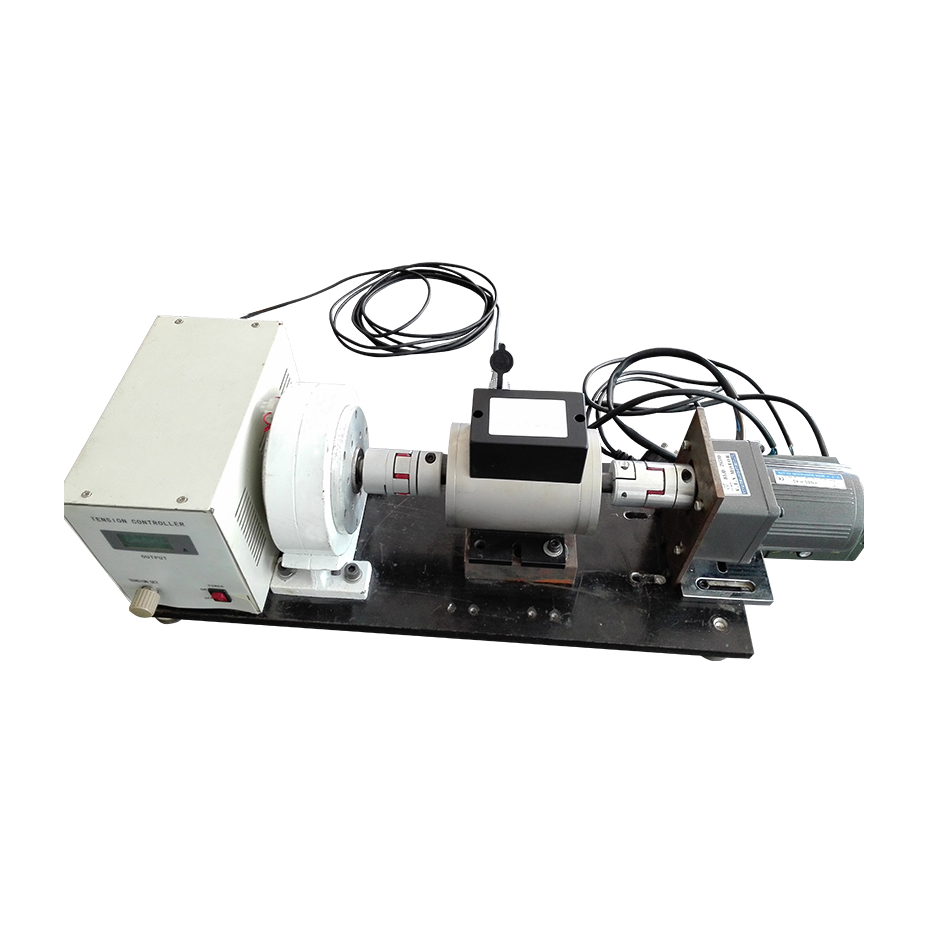

ALIYIQI ADN-300 動的トルク試験機 (300N·m, 0.1N·m)

Max load: 300N·m

Index value: 0.1N·m

Torque accuracy: <± 0.5% F · S, <± 0.3% F · S, <± 0.1% F · S (optional)

Frequency response: 100μs

Nonlinear: ＜ ± 0.1% F · S

Repeatability: ＜ ± 0.1% F · S

Blacklash: ＜ 0.1% F · S

Zero drift: ＜ 0.2% F · S / year

Zero temperature drift: 500MΩ

Static overload: 120% 150% 200% (optional)

Operating temperature: －10 ~ 50 ℃ (-50 ~ 95 ℃ optional)

Storage temperature: －20 ~ 70 ℃

voltage: ± 15V ± 5% or 24VDC

Total current consumption: ＜ 200mA

Frequency signal output: 5KHZ ~ 15KHZ (0~5V/1~5V/0~10V/4~20mA optional)

Speed ​​signal output: 60 pulses / rev (0~5V/0~10V/4~20mA optional)

Rated torque: 10KHZ ± 5kHZ (positive and negative bidirectional measured value),

Speed ​​can be up to 1000rpm
