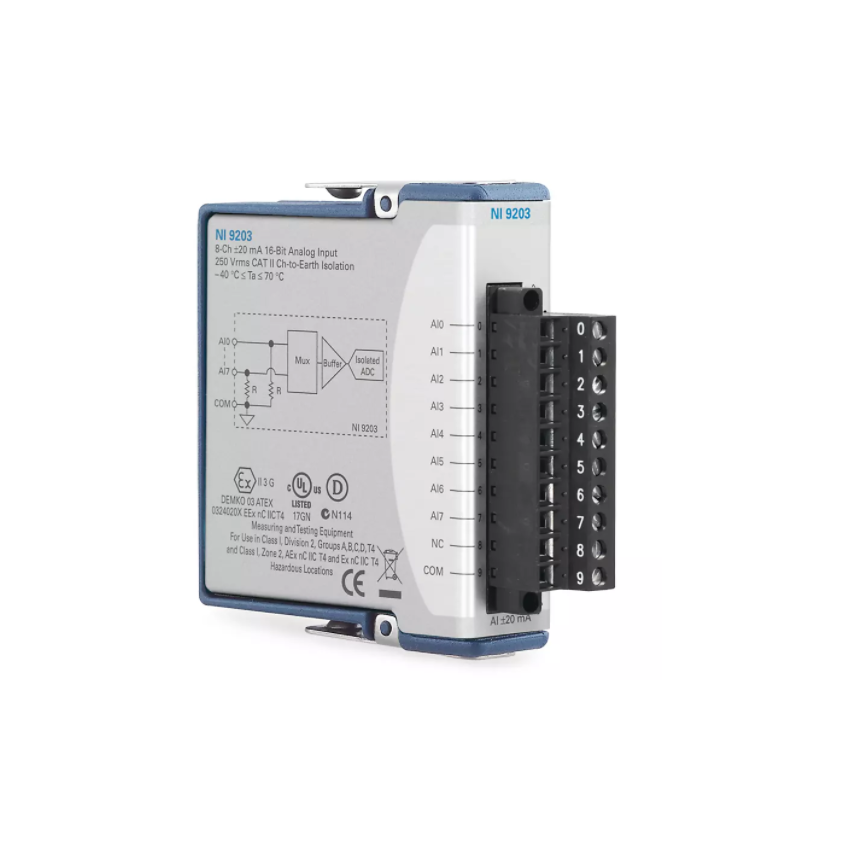

NI NI-9203 C Series Current Input Module (None-Conformal Coated, Screw Terminal, 8ch, 200 kS/s, ±20 mA, 16-Bit)
生産者: NI Model: NI-9203 P/N: 779516-01 - 連絡先
전화번호: いい価格のため、連絡しなさい
ホットライン: (+84) 968060220
電話番号: +84 (24）62923267
Maximum Number of Single-Ended Analog Input Channels: 8
Maximum Number of Differential Analog Input Channels: 0
Maximum Sample Rate: 200 kS/s
Analog Input Resolution: 16 bits
Measure Current: -20 mA to 20 mA
Analog Input Isolation: 250 Vrms Ch-Earth Ground Isolation
Front Connection Type: Screw Terminal
Conformal Coated: No
Enclosed: Yes
Provides current measurements for CompactDAQ and CompactRIO systems.
The C Series Current Input Module features programmable input ranges, variable connectivity options, and built-in noise rejection. You can also choose from options with built-in anti-aliasing filters or high-channel density to reduce the number of modules needed. The C Series Current Input Module supports safety features, certifications, input ranges, overvoltage ranges, and connectivity for applications such as power quality monitoring and metering, utility pole-mounted smart switches, utility pole-mounted smart grid reclosers, substation merging units, industrial machine measurements, health monitoring, predictive maintenance and prognostics, and phasor measurement units (PMUs). The C Series Current Input Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
