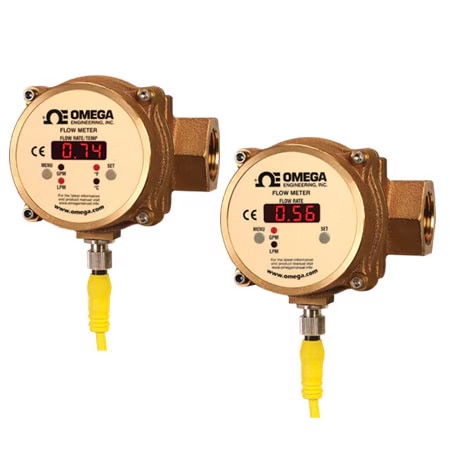

OMEGA FV101-SS ボルテックスシェディング流量計および温度トランスミッター (0.4 GPM, 1 1/2 in, NPT Female, IP 65 Type 1, IP 65 Type 12, IP 65 Type 14, IP 65 Type 3, IP 65 Type 4)

Weight: 2.8 lb

Accuracy: ± 2 %

Display Note: 3-digit, 7.62 mm (0.3") high numeric LED that flashes below setpoint

Display Type: LED

Installation: 10 pipe diameters upstream and 5 downstream recommended

Supply Power: 10 to 30 Vdc

Output Detail: Analog Output: 4 to 20 mA (600 Ω @ 24 Vdc) Alarm Output: SPST SSR, NO or NC operation, selectable; dual alarms for flow/temperature units FV101 and 102: 250 mA @ 30 Vdc up to 85°C (185°F) FV103 thru 108: 125 mA @ 30 Vdc up to 85°C (185°F) reduced current rating at higher temperatures

Pressure Type: Gauge

Repeatability: ±0.25%

Response Time: 0.9 to 7.5 sec

Alarm Deadband: 0.05

Control Output: SPST Relay, SSR Relay

Mounting Plates: N/A

Number of Digits: 3

Electrical Output: 4 to 20 mA, 250 mA SPST SSR

Enclosure Ratings: IP 65 Type 1, IP 65 Type 12, IP 65 Type 14, IP 65 Type 3, IP 65 Type 4

Materials, Wetted: FKM, PVDF

Supply Power Note: 10 to 30 Vdc @ 80 mA

Enclosure Material: 316 Stainless Steel

Pressure Drop, Max: 9.2 psi

Response Time Note: User selectable from 0.9 to 7.5 seconds

Media Compatibility: Liquids

Electrical Connection: 5 - Pin Micro Male

Operating Pressure, Max: 300 psi

Process Connection Size: 1 1/2 in

Process Connection Type: NPT Female

Volumetric Flow Rate, Max: 4 GPM

Volumetric Flow Rate, Min: 0.4 GPM

Operating Temperature, Max: 99 °C

Operating Temperature, Min: 2 °C
