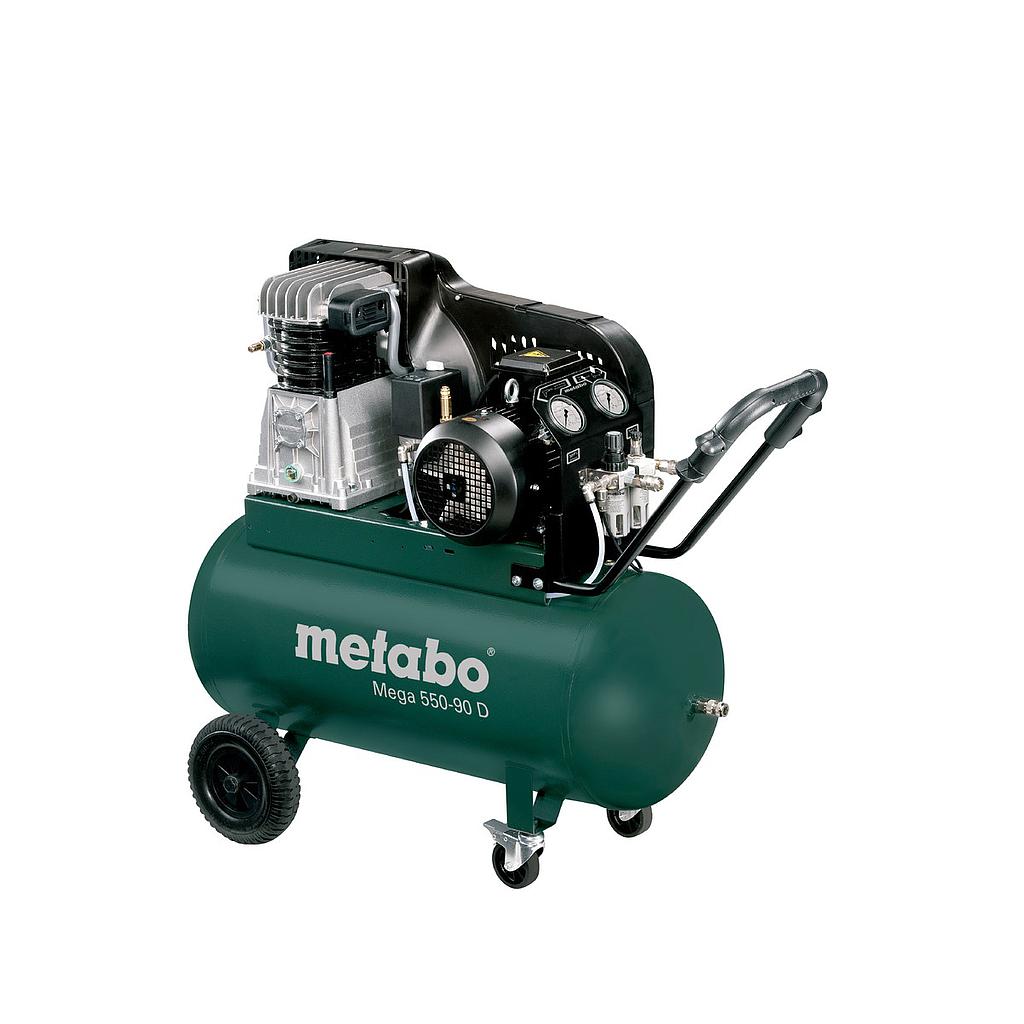

METABO MEGA 550-90 D Mega compressor (380-415 V / 50 Hz)
생산업체: METABO Model: MEGA 550-90 D P/N: 601540000 출처: Italy 보증: 12 Month - 연락처
Suction rate: 510 l/min / 135 gal/h
Filling capacity: 395 l/min / 14 cfm
Effective delivery volume (at 80% max. pressure): 360 l/min / 12.7 cfm
Maximum pressure: 11 bar / 160 psi
Rated input power: 3 kW / 4 HP
Maximum speed1400 rpm
Tank capacity: 90 l / 23.8 gal
Sound pressure level (LpA): 87 dB(A)
Sound power level (LwA): 96 dB(A)
Dimensions: 1126 x 490 x 917 mm / 3.7 x 1.6 x 3 ft
Weight: 103 kg / 227 lbs
Cable length: 1.5 m / 5 ft
Noise emission
Sound pressure level: 87 dB(A)
Sound power level (LwA): 96 dB(A)
Delivery
3 x Universal couplings
Accessories
COMPRESSED AIR
Accessories for compressors, Compressed air preparation, Accessories for compressed air tools
OTHER ACCESSORIES
Occupational safety
Datasheet
Features
More powerful and robust V-belt compressor for demanding use
Belt drive for low speeds and a particularly quiet operation
Two-stage compression for particularly high performance and long service life
For three-phase current
Working pressure can be regulated according to application and air quality improved thanks to the filter pressure reducer with manometer and oil-mist lubricator
Convenient pressure switch for good cold starting, complete with relief valve
Additional manometer for displaying the tank pressure
Overload protection: protects the motor from overheating
Oil-lubricated 2-cylinder piston compressors for high air supply volume
Instrument panel with easy to read manometer for tank- and working pressure
Large, rubberised wheels for comfortable transport
Steering castors with locking brake for high manoeuvrability
Cable winding mechanism
Ergonomic and long pull handle with integrated cable drum
10 year tank warranty against rust
