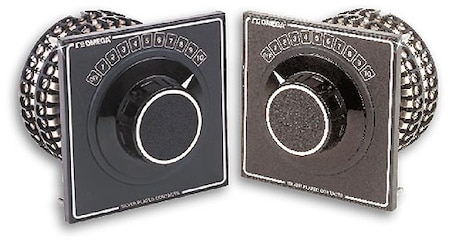

OMEGA SW144G-16-M Rotary Thermocouple Selector Switches
생산업체: OMEGA Model: SW144G-16-M - 연락처
Bezel Size: 96 mm
Cutout Note: 92 mm (35⁄8") Dia.
Face Height: 28 mm
Panel Depth: 101 mm
Switch Size: 0.25 in
Contact Action: Make Before Break
Number of Poles: 4
Contact Material: Gold Plated
Face Height Note: 28 mm (13⁄32"); 67 mm (25⁄8") with pistol grip
Cutout Dimensions: 92 mm dia.
Contact Resistance: 0.004 Ω
Number of Positions: 16
Additional Features 1: Jab-In Connections
Insulation Resistance: 20 MΩ
Contact Resistance Note: 0.004 Ω or less
Insulation Resistance Note: 20 MΩ at 300 Vdc
