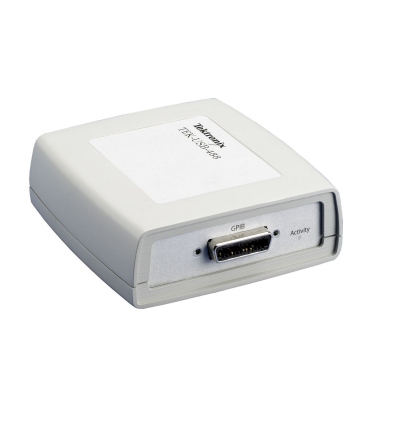

TEKTRONIX TEK-USB-488 GPIB-USB 어댑터

Physical Connection - GPIB interface connector provided on adapter.

Compliance - IEEE 488.2 compliant.

Other

Bulk Data Rate - Specification not available at this time.

Front-panel Indicators - Power Applied, Adapter Status, and USB Status.

Environmental

Temperature

Operating - 0 °C to +50 °C.

Nonoperating - -20 °C to +60 °C.

Humidity

Operating - (High) 40 °C to 50 °C, 10% to 60% relative humidity; (Low) 0 °C to 40 °C, 10% to 90% relative humidity.

Nonoperating - (High) 40 °C to 60 °C, 5% to 60% relative humidity; (Low) 0 °C to 40 °C, 5% to 90% relative humidity.

Altitude

Operating - Up to 3,000 m (10,000 ft.).

Nonoperating - Up to 15,240 m (50,000 ft.).

Regulatory

Emissions Compliance - EN 55011, Class A.

EMC Compliance - EN61326, Class A.

Compliance Labeling -

C-Tick (Australia / New Zealand).

CE (European Union).

WEEE (European Union).

Power

Source Power - Provided by USB host or orderable external power supply.

Power Consumption - Regulated at 5 VDC at <500 mA.
