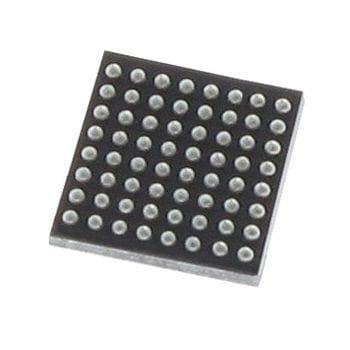

Sub-GHz MCU with LoRA Tranceiver with USB and 256KB Flash Microchip Technology ATSAMR34J18B-I/7JX
Hãng sản xuất: Microchip Technology Model: ATSAMR34J18B-I/7JX - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Core: ARM Cortex M0+
Technology: Si
Sensitivity: - 136 dBm
Unit Weight: 3.838 g
Output Power: 20 dBm
Data RAM Size: 8 kB, 32 kB
Data RAM Type: SRAM
ADC Resolution: 12 bit
Data Bus Width: 32 bit
Interface Type: I2C, SPI, UART
Mounting Style: SMD/SMT
Number of I/Os: 27 I/O
Number of Timers: 3 Timer
Maximum Data Rate: 12 Mbps
Moisture Sensitive: Yes
Operating Frequency: 915 MHz
Program Memory Size: 256 kB
Program Memory Type: Flash
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.8 V
Number of ADC Channels: 8 Channel
Maximum Clock Frequency: 48 MHz
Supply Current Receiving: 17 mA
Supply Current Transmitting: 94.5 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
