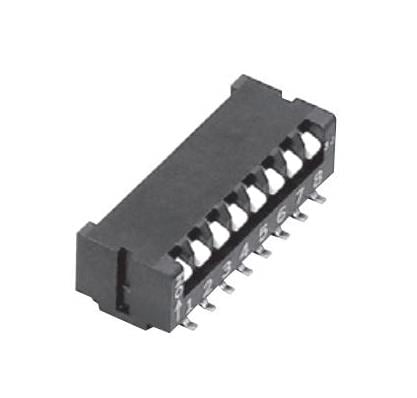

DIP Switches Piano DIP Switch, OFF-ON(up) 8 Position, Convex Actuator 100mA @ 6V DC Straight PC Terminals, Magazine 20 pc Packaging Nidec Components CFP-0802MC
Hãng sản xuất: Nidec Components Model: CFP-0802MC - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Life: 1000 Cycle
Actuator: Piano, Slide
Illuminated: Non-Illuminated
Switch Type: DIP
Contact Form: 8PST
Actuator Style: Convex Lever
Current Rating: 100 mA
Mounting Angle: Right Angle
Mounting Style: PCB Mount
Terminal Pitch: 2.54 mm
Contact Plating: Gold
Contact Material: Copper Alloy
Actuator Material: Copper Alloy, Polyamide (PA)
Termination Style: PC Pin
Voltage Rating DC: 6 VDC, 24 VDC
Number of Positions: 8 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
