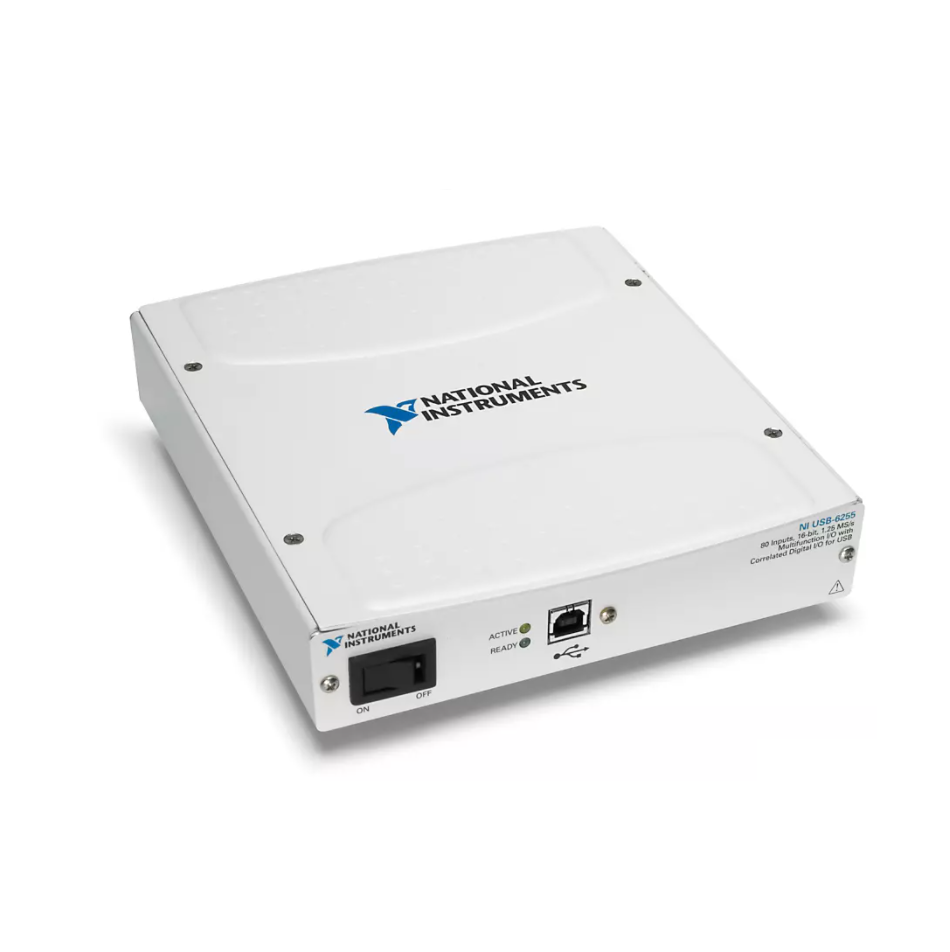

Multifunction I/O Device NI USB-6255 (1.25 MS/s, 16 bits, 4095 samples, SCSI (qty 2), Support US 120VAC)
Hãng sản xuất: NI Model: USB-6255 P/N: 779959-01 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Enclosed: Yes
Bus Connector: USB 2.0
Maximum Number of Single-Ended Analog Input Channels: 80
Maximum Number of Differential Analog Input Channels: 40
Simultaneous Sampling: No
Maximum Sample Rate: 1.25 MS/s
Analog Input Resolution: 16 bits
Analog Input Absolute Accuracy: 1920 μV
Number of Analog Output Channels: 2
Maximum Update Rate: 2.86 MS/s
Number of Bidirectional Digital Channels: 24
Number of Counters/Timers: 2
Front Connection Type: SCSI (qty 2)
Supported Power Input: United States 120VAC
Analog Input Isolation: —
Analog Input FIFO Buffer Size: 4095 samples
Provides combinations of analog I/O, digital I/O, and counter/timer functionality in a single device for computer-based systems.
The Multifunction I/O Device features I/O with varying channels, sample rates, output rates, and other features to meet many common measurement requirements. You can use the device for industry applications such as laboratory automation, research, and design verification. The included DAQExpress companion software provides basic measurement and analysis, while the included NI-DAQmx driver provides the ability to create customized automated measurement and control applications. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
Datasheet
