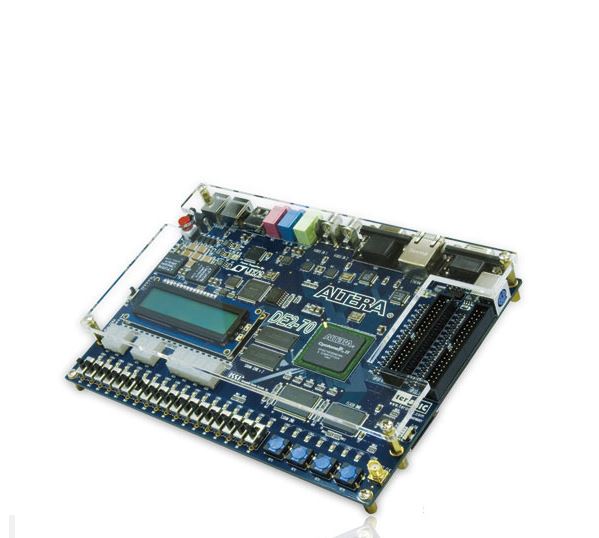

Terasic Altera DE2-70 Board
Hãng sản xuất: Terasic Model: Altera DE2-70 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
USB Blaster (on board) for programming and user API control; both JTAG and Active Serial (AS) programming modes are supported
2-Mbyte SSRAM
Two 32-Mbyte SDRAM
8-Mbyte Flash memory
SD Card socket
4 pushbutton switches
18 toggle switches
18 red user LEDs
9 green user LEDs
50-Mhz oscillator and 28.63-Mhz oscillator for clock sources
24-bit CD-quality audio CODEC with line-in, line-out, and microphone-in jacks
VGA DAC (10-bit high-speed triple DACs) with VGA-out connector
2 TV Decoder (NTSC/PAL) and TV-in connector
10/100 Ethernet Controller with a connector
USB Host/Slave Controller with USB type A and type B connectors
RS-232 transceiver and 9-pin connector
PS/2 mouse/keyboard connector
IrDA transceiver
1 SMA connector
Two 40-pin Expansion Headers with diode protection
The Altera DE2-70 development and education board, equipped with almost 70,000 LEs of Altera Cyclone® II 2C70, not only adopts the advantages of the Altera DE2 board such as the multimedia, storage, and networking interfaces but also has larger memory components than ever before. The board offers a rich set of features that make it suitable to be used in a laboratory environment for university and college courses, for a variety of design projects, as well as for the development of sophisticated digital systems. Altera provides a suite of supporting materials for the DE2-70 board, including tutorials, "ready-to-teach" laboratory exercises, and illustrative demonstrations.
