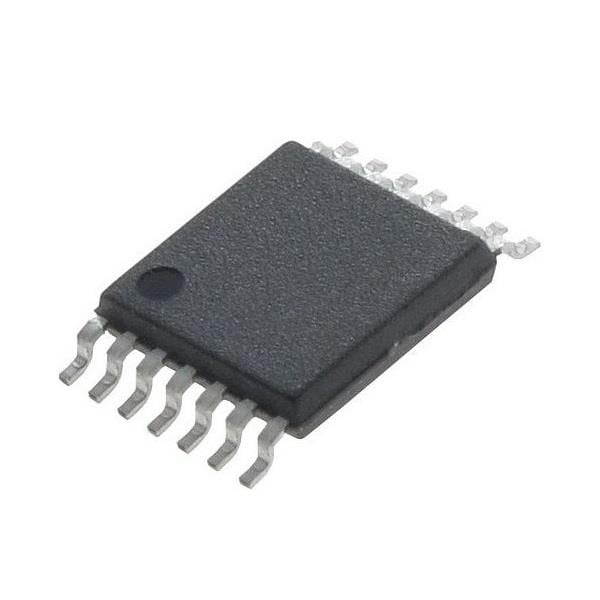

Buffers & Line Drivers CMOS Logic IC 6.0ns 24mA 1.65 to 3.6V Toshiba TC74LCX125FK(EL,K)
Hãng sản xuất: Toshiba Model: TC74LCX125FK(EL,K) - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Width: 3 mm
Height: 0.8 mm
Length: 4.25 mm (Max)
Function: Buffer/Line Driver
Polarity: Non-Inverting
Technology: CMOS
Output Type: 3-State
Unit Weight: 20 mg
Logic Family: LCX
Mounting Style: SMD/SMT
Input Signal Type: Single Ended
Quiescent Current: 10 uA
Number of Channels: 4 Channel
Supply Current - Max: 10 uA
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.65 V
Number of Input Lines: 4 Input
Number of Output Lines: 4 Output
Propagation Delay Time: 6.5 ns, 6 ns
Low Level Output Current: 24 mA
Operating Supply Current: 10 uA
Operating Supply Voltage: 2.5 V, 3.3 V
High Level Output Current: - 24 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
