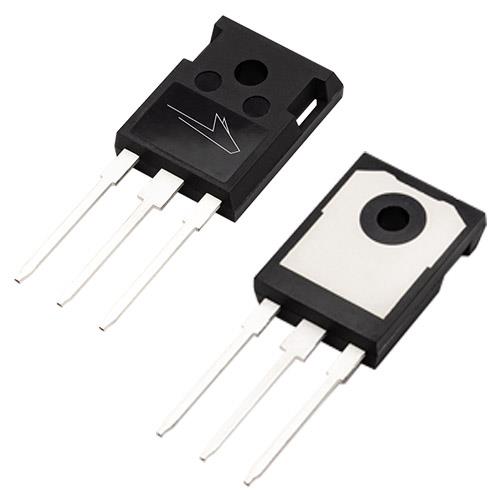

SiC MOSFETS 650V MOSFET 25mOHMS SiC MOSFET Wolfspeed C3M0025065D
Hãng sản xuất: Wolfspeed Model: C3M0025065D - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Fall Time: 12 ns
Rise Time: 60 ns
Technology: SiC
Unit Weight: 6 g
Channel Mode: Enhancement
Configuration: Single
Mounting Style: Through Hole
Qg - Gate Charge: 108 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 326 W
Vgs - Gate-Source Voltage: - 8 V, + 19 V
Typical Turn-On Delay Time: 14 ns
Typical Turn-Off Delay Time: 27 ns
Id - Continuous Drain Current: 97 A
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 40 C
Rds On - Drain-Source Resistance: 25 mOhms
Vds - Drain-Source Breakdown Voltage: 650 V
Vgs th - Gate-Source Threshold Voltage: 3.6 V
