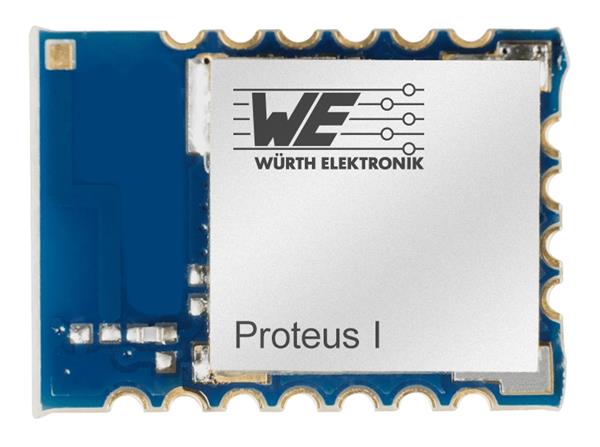

Bluetooth Modules WIRL-BTLE Proteus-I 4.2 w/int antenna Wurth Elektronik 2608011024000
Hãng sản xuất: Wurth Elektronik Model: 2608011024000 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Core: ARM Cortex M4F
Width: 8 mm
Height: 1.8 mm
Length: 11 mm
Protocol: BLE, Bluetooth 4.2
Data Rate: 1 Mb/s
Frequency: 2.44 GHz
Shielding: Unshielded
Dimensions: 11 mm x 8 mm x 1.8 mm
Modulation: DSSS
Memory Size: 64 kbit, 512 kbit
Sensitivity: - 96 dBm
Unit Weight: 220 mg
Output Power: 3 dBm
Interface Type: UART
Mounting Style: SMD/SMT
Frequency Range: 2.402 GHz to 2.48 GHz
Moisture Sensitive: Yes
Modulation Technique: DSSS
Receiver Sensitivity: - 96 dBm
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.8 V
Operating Supply Voltage: 1.8 V to 3.6 V
Supply Current Receiving: 5.4 mA
Supply Current Transmitting: 7.5 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
