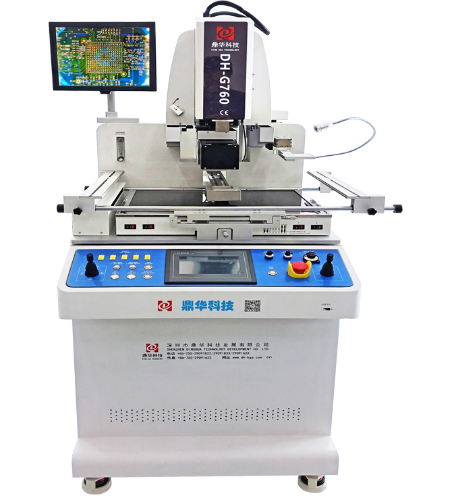

DINGHUA TECHNOLOGY DH-G760 LED自动返修站 (8200W, 1x1~100x100mm)

Rated power: 8200W

Upper power: 1200W

Lower power: 1200W

IR preheating power: 5800W

Chip application: POP, CCGA,BGA,QFN and CSP etc.

Temperature profiles storage: 50000 groups

Chip feeding system: Automatic picking up and replacing

Optical CCD working mode: Front, back, left and right

PCB positioning: Up and down intelligent positioning,bottom "5-point support" with V-groove fixing PCB which can be adjusted freely in the X-axis direction, with universal fixtures

meanwhile

Chip mounting: Laser positioning and optical CCD locating

Temperature accuracy: ± 1 ℃

Alignment accuracy: 0.01mm

PCB size: Max 450×500 mm Min 10×10mm

Chip size: 1*1~100*100mm

Min spacing: 0.15mm

Min LED spacing: 0.1mm

External temperature ports: 4 pcs (optional)

Dimensions: L900×W850×H1750 mm

Weight: 200kg
