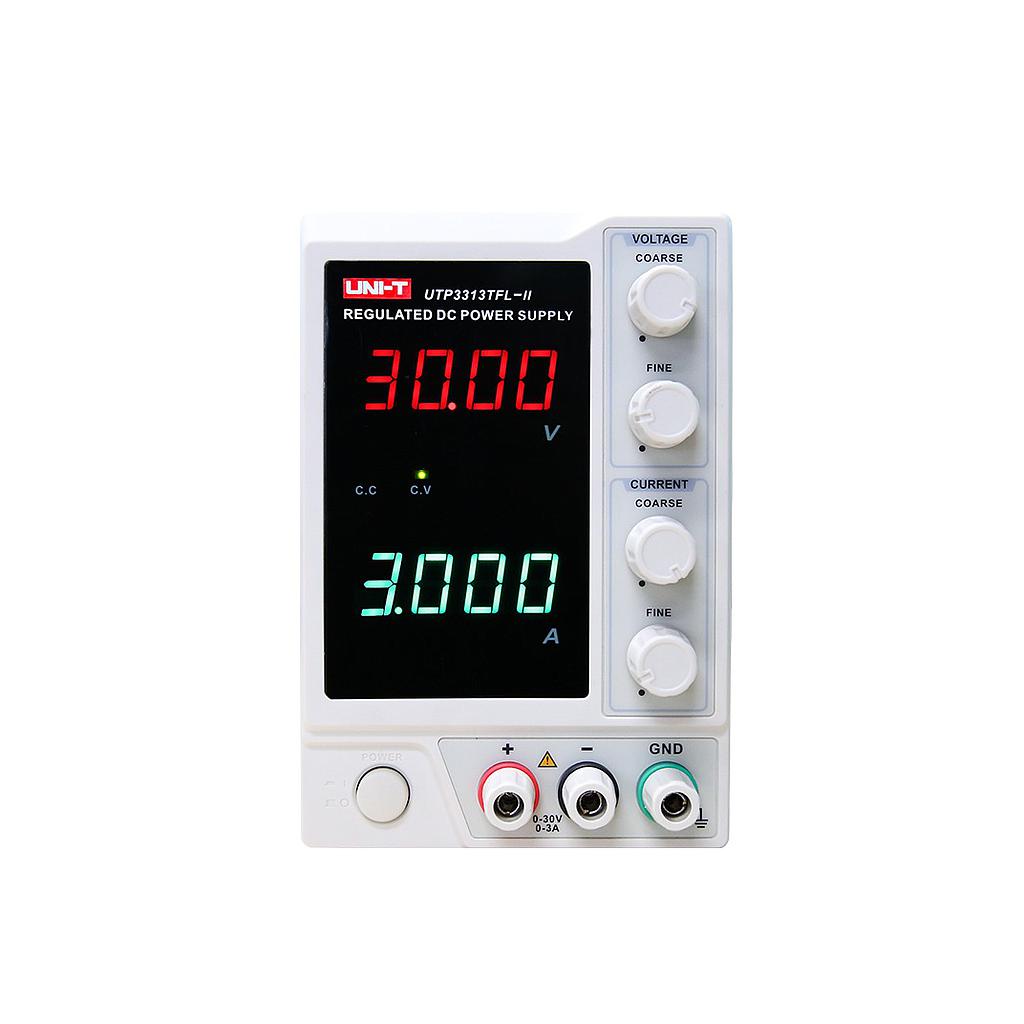

UNI-T UTP3313TFL-II DC电源 (30V/3A/90W)

Output voltage: 0~30V

Output current: 0~3A

Output power: 90W

Accuracy:

+ Voltage: ＜0.5%+20mV

+ Current: ＜0.5%+5mA

Display: 4 digit LED

Interfaces: No

Programmable: No

Over voltage/current protection: No

Over temperature protection: Yes

Ripple and noise: ≤1mVrms

Output regulation resolution CV: 10mV (typical), CC: 1mA (typical)

Reliability MTBF(e): ≥2000hrs

Display mode LED voltage and current dual display

Feature Auto conversion of constant voltage and current with current limit protection

Power Input voltage: 110V/220V±5% AC; frequency: 50Hz/60Hz

Product color White and grey

Product net weight 3kg

Product size 105mm x 165mm x 249mm

Standard accessories Power cord, output cables
